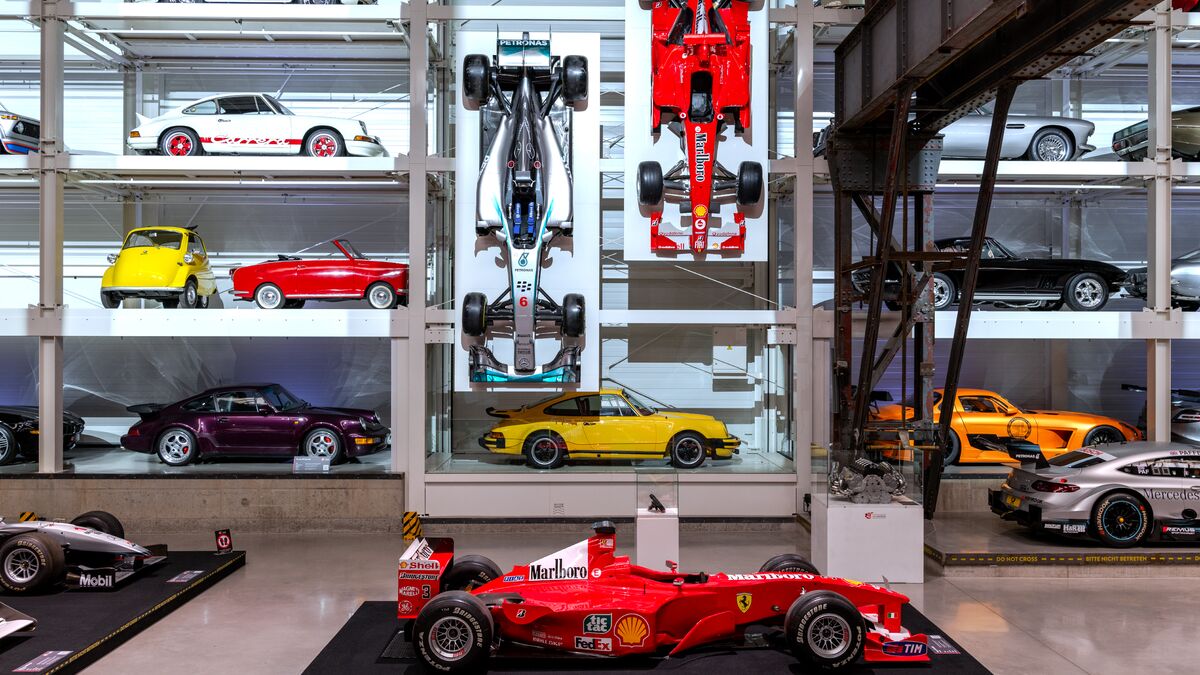

A wall-mounted shelf full of cars in a museum
A wall-mounted shelf full of cars in a museum

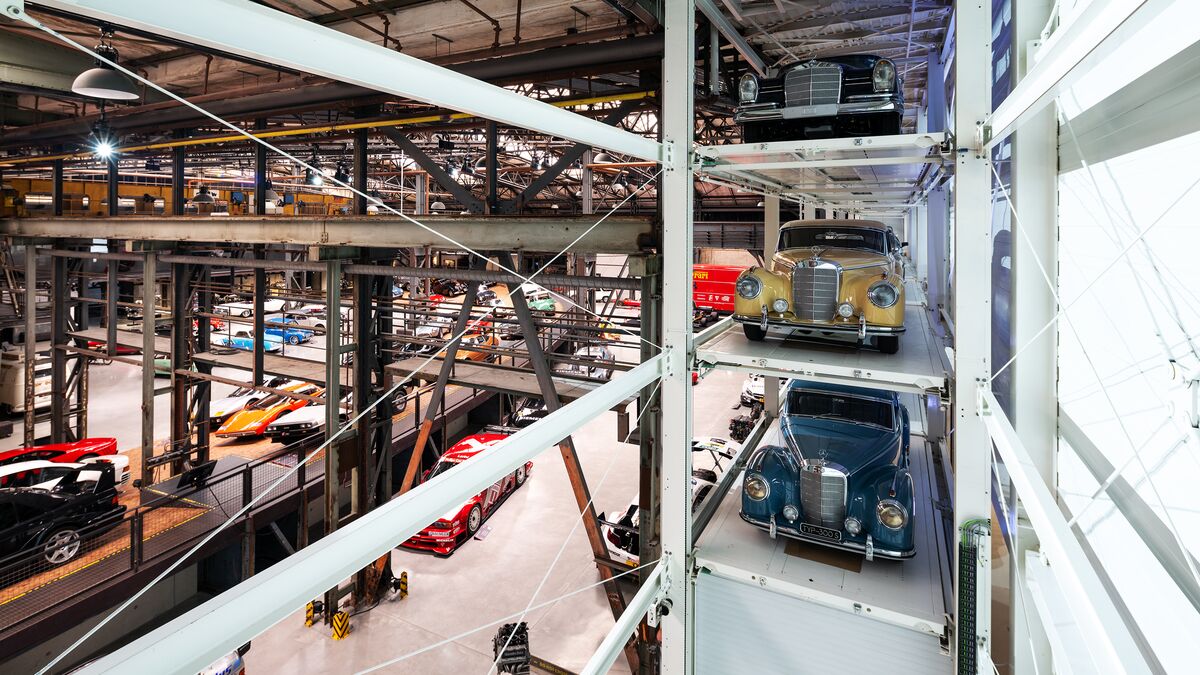

Side view of an automated parking system in the museum

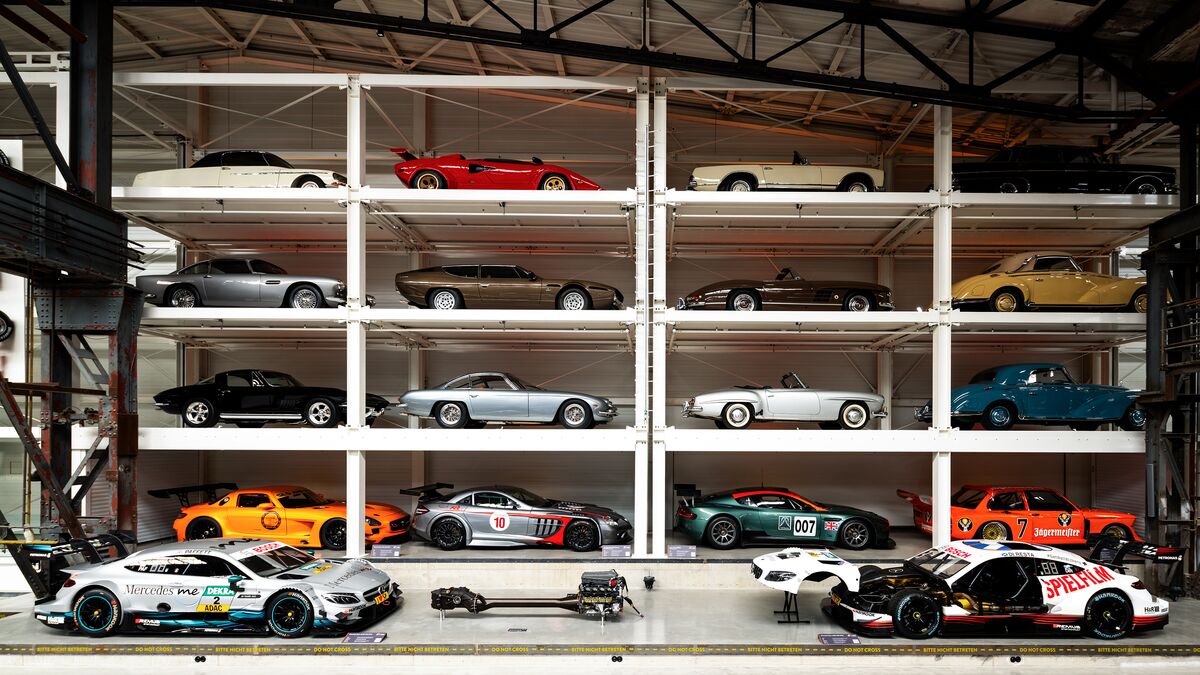

A wall-mounted shelf full of cars in a museum

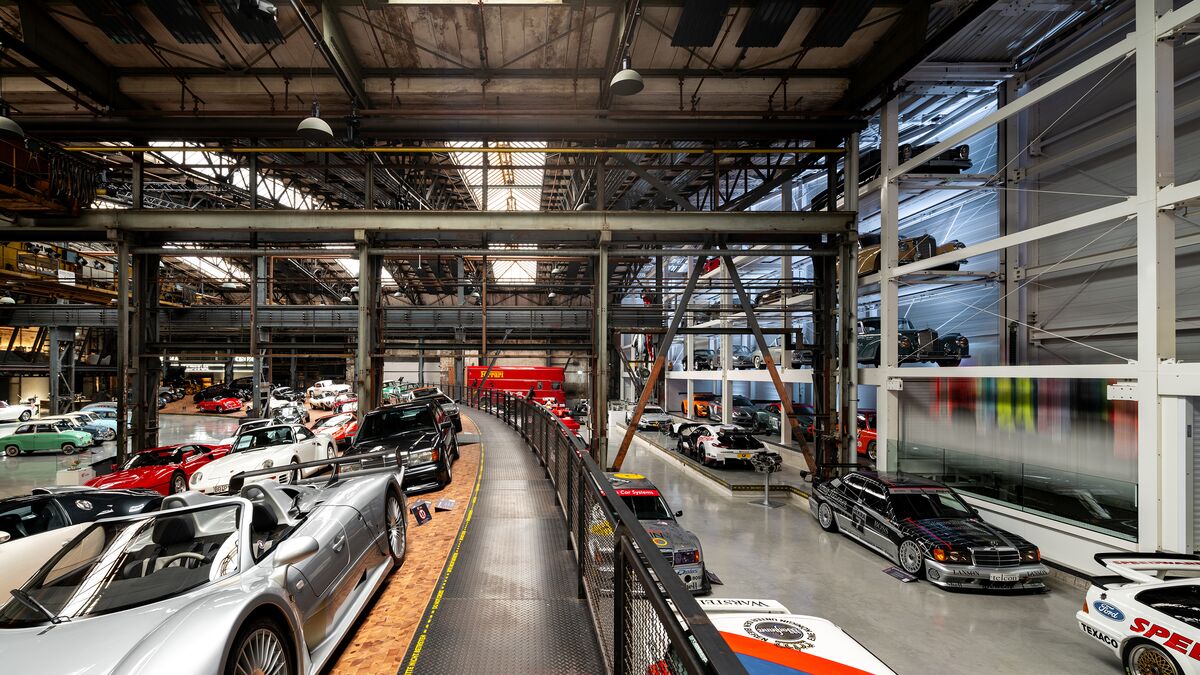

A general view of the museum hall with the cars

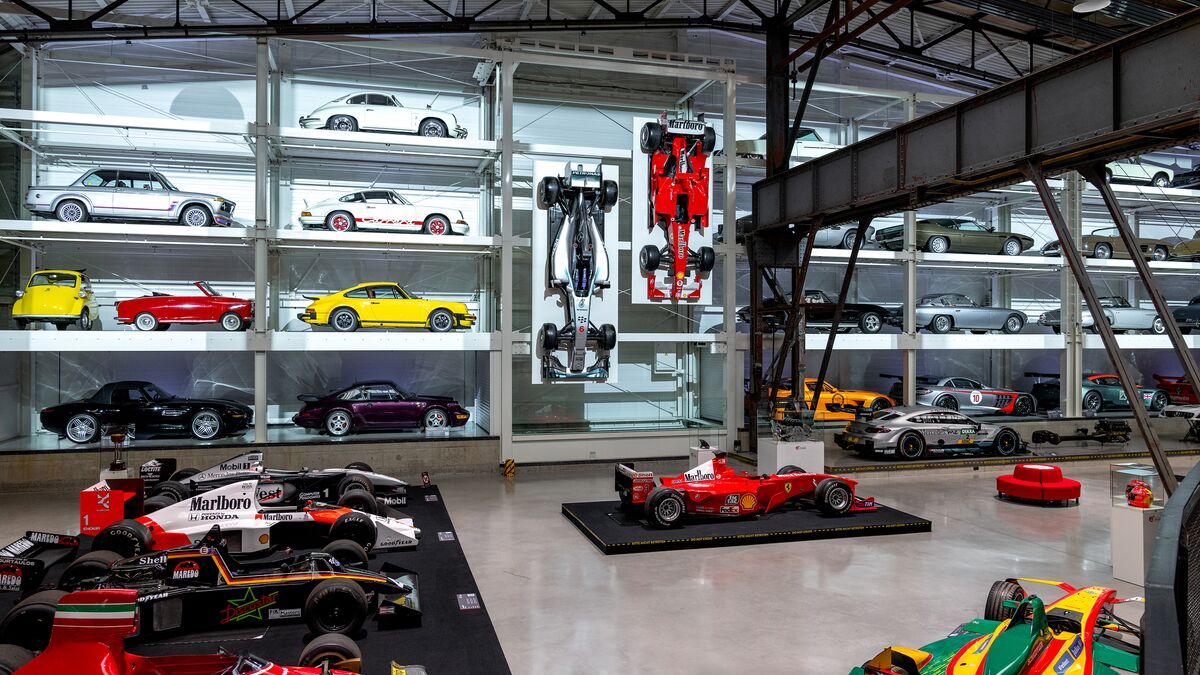

Cars are parked in a rack storage system
A wall-mounted shelf full of cars in a museum
Youtube Logo

Enable Youtube content

Yes, I would like to have content from Youtube displayed. I agree that by doing so, my personal data will be passed on to the operator of the portal from which the content originates, so that they can analyze my behavior. You can find more information in our privacy policy

Accept
A wall-mounted shelf full of cars in a museum
A wall-mounted shelf full of cars in a museum
Side view of an automated parking system in the museum
A wall-mounted shelf full of cars in a museum
A general view of the museum hall with the cars
Cars are parked in a rack storage system
A wall-mounted shelf full of cars in a museum

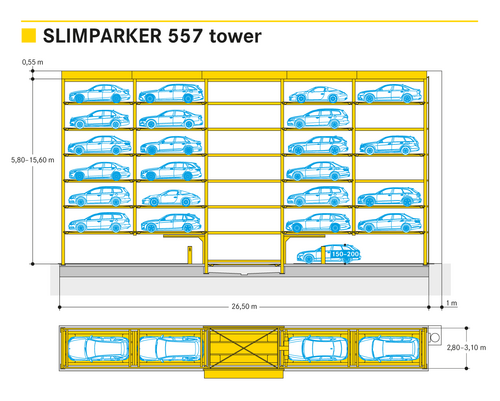

SLIMPARKER 557 TOWER

Skyter i været: WÖHR Slimparker 557 Tower er slank og allsidig.

Parkeringssystemet Slimparker 557 tilbyr opptil 23 parkeringsplasser over bakken på smale og lange tomter. En sentral vertikal heis i overføringsområdet transporterer bilen til ett av de 6 mulige parkeringsnivåene per system. Hvert nivå kan lagre opptil 4 biler. Den slanke konstruksjonen gjør det mulig å integrere systemet i en lydisolerende vegg. Dette beskytter beboere i boligområder mot støyforurensning fra nærliggende vei- og jernbanetrafikk. Smale mellomrom kan utnyttes til ekstra parkeringsplasser.

Spesifikasjoner

  • Automatisk parkeringssystem for opptil 23 biler
  • Plattformlast: 2 000 kg og 2 600 kg
  • Smale mellomrom lukkes perfekt
  • Svært liten grunnflate og slank konstruksjon
  • Ingen plasskrevende ramper og kjørefelt
  • Slank installasjonsbredde på kun 280 cm, kan utvides opp til 310 cm i trinn på 10 cm
  • Ulike bilhøyder fra 150–200 cm kan håndteres
  • Individuell fasadedesign mulig – maks. vekt ca. 50 kg per m²
  • I tråd med ideen om «Green-Parking»

Produktvarianter

Teknisk informasjon
